Rotary hand lever valve 4/3 OC, fixed positions, G 1/8 ", DN 3
Article number: RHLV1843OC
Article number: RHLV1843OC
 | Rotary hand lever valves | |
 | 3D-CAD-file RHLV1842 |
excl. VAT incl. VAT
| Rotary hand lever valves | |
| 3D-CAD-file RHLV1842 |
Medium: Compressed air
Temperature range:
-5 ° C to + 60 ° C
Operating pressure:
0.5 - 10 bar

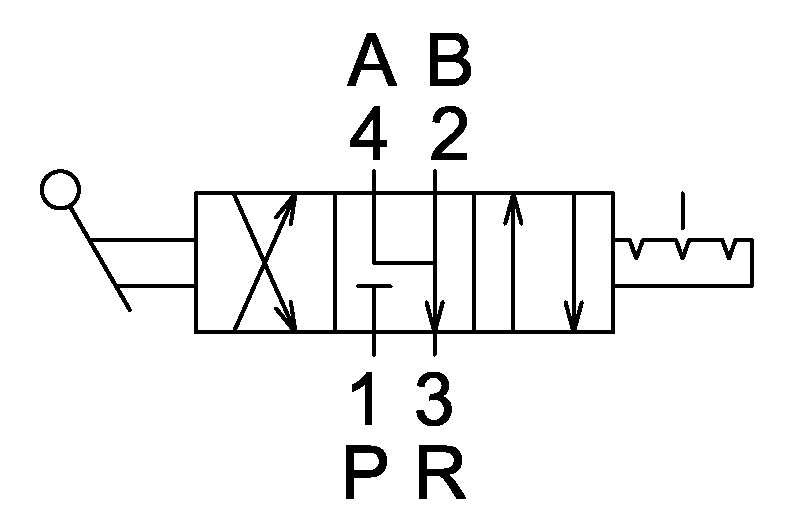

4/3 center position open
All statements are intended as non-binding guidelines! We are not liable for data selection not confirmed in writing. Pressure data, unless stated otherwise, relate to liquids from group II at +20 C.
TECHNICAL DATA | |
|---|---|
| Function | 4/3 OC |
| Connection | G 1/8" |
| Workload | 0.5 - 10 bar |
| Orifice (DN) | 3 mm |
| Version | Fixed positions |
| Weight | grams each |
| Commodity code | 84814090 |
 |  |  |  |  |
